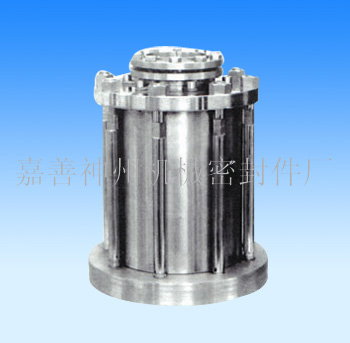

Product Model
Structure characteristics:
Operating parameters:
The container type structure has the advantages of versatility, no drive direction and short axial installation. It is commonly used in conjunction with the hydraulic pump station.
Medium: oil, water, alkaline, acid and other general medium; pressure: type 1, type 2, type 4 PN0~0.6MPa 3 PN-0.1~1.6MPa; speed: temperature: -40 = 2m/s; ~180 DEG C; when the temperature exceeds 180 degrees, shall be provided with a cooling water tank, the installation height of L1 or L2 and 60mm
1. kettle mouth "O" shape circle, O RING
8. box "O" ring O RING
2., the static ring "O" ring
9. skeleton oil seal
3. medium end stationary ring
10. bearings
4. medium end moving ring
11. action ring
5. move ring "O" ring
12. spring
6. sleeve "O" ring
13. atmospheric end stationary ring
7. spring
